Quick Details

  • Brand Name: TengShun
  • Model Number: TS-1682000
  • Use: Li-ion battery pack
  • Type: Electric
  • Place of Origin: Guangdong, China (Mainland)
  • Product Name: 16.8v battery charger
  • Input: 100-240Vac 50/60Hz
  • Input plug: EU US UK AUS Korea Plugs
  • Output Item: 4.2v4a 8.4v3a 12.6v3a 16.8v2a 25.2v1.5a 29.4v1.2a
  • DC Jack: 3.5*1.35 5.5*2.1 5.5*2.5 4.0*1.7
  • Cerficate: CE GS FCC UL PSE KC ROHS
  • Charge mode: CC--CV Mode
  • Led Indicator: Red--in charging; Green--fully charged
  • MQQ: 200pcs
  • Lead time: 10 days

Packaging & Delivery

Packaging Details PE Bag + White Box + CTN

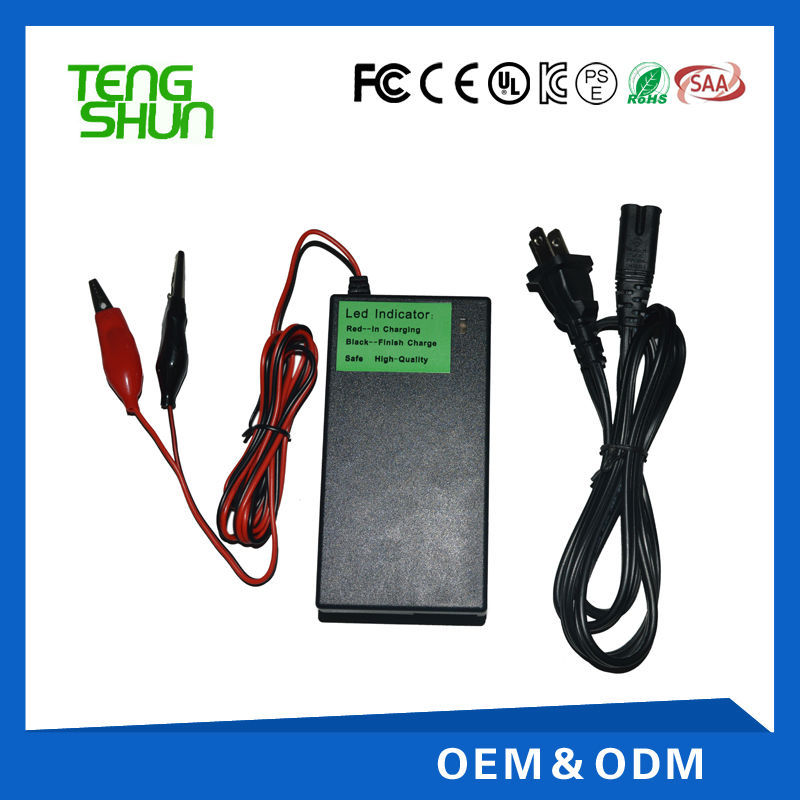

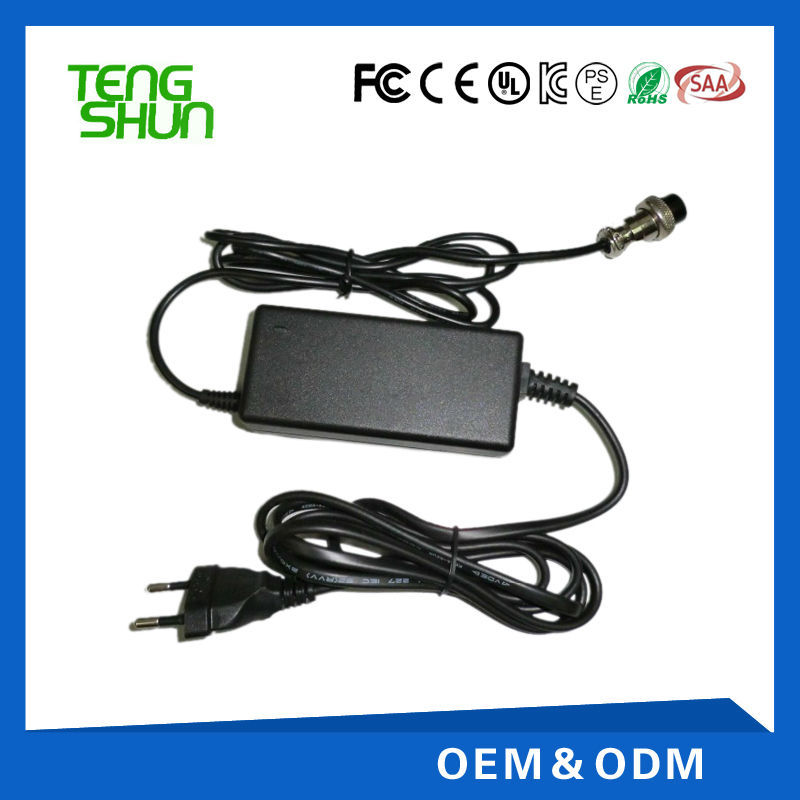

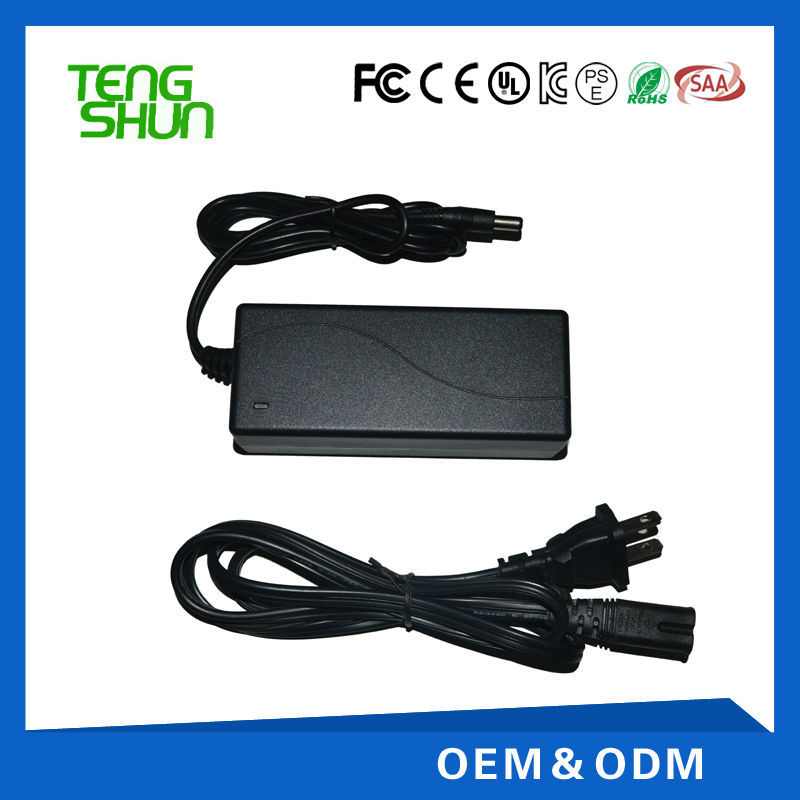

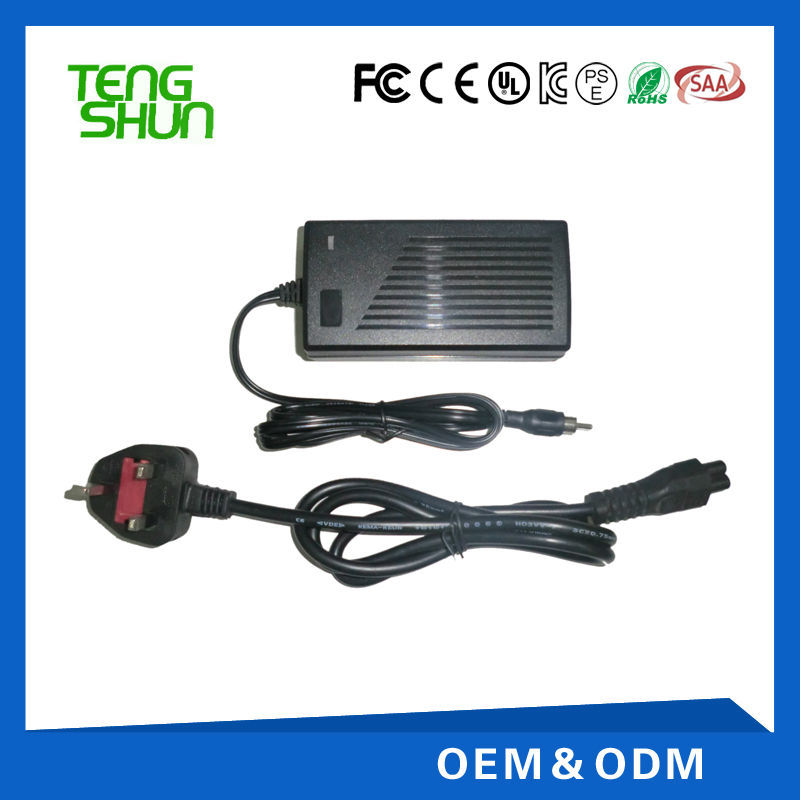

8.4v3a 12.6v3a 16.8v 2a li-ion battery charger 14.8v















A.product descriptions

 <

ModelLi-ion Battery Charger
Input100-240Vac 50/60Hz
Input plug(power cords)EU  US  UK  AU  KOREA  South African  Plugs
Battery voltage3.7V/cell
Output

4.2v4a  8.4v3a  12.6v3a  16.8v2a  25.2v1.5a  29.4v1.2a

Our Max Power of Charger

6K Watts(such 12V200A  24V200A  36V150A 48V100A )

Highest Charge Voltage

4.2V for 1S 3.7V Li-ion Battery pack

8.4V for 2S 7.4V Li-ion Battery pack

12.6V for 3S 11.1V Li-ion Battery pack

16.8V for 4S 14.8V Li-ion Battery pack

21V for 5S 18.5V Li-ion Battery pack

25.2V for 6S 22.2V Li-ion Battery pack

29.4V for 7S 24V Li-ion Battery pack

33.6V for 8S 24V Li-ion Battery pack

42V for 12S 36V Li-ion Battery pack

54.6V for 13S 48V Li-ion Battery pack

Charge mode2-stage Mode: CC---CV Mode
Led Indicator(Dual Color)Red---in Charging; Green--Finish charge/ no load
Led Switch current10-15% of charge current
Safe ProtectionOver-load protection Over-current protection
Short circuit protection Polarity Reverse Protection
Safe CertificateCE  ROHS CB  GS  FCC  UL  SAA  PSE  KC
Efficiency>80%
DC Jack5.5*2.1  5.5*2.5  3.5*1.35  2.5*0.7
Power Consumption≤0.5W at Rated Voltage(adapter at no load)
Ripple And NoiseOutput voltage 1%, Ripple&Noise≤120mv
High-Voltage testPrimary to secondary: 3 kV / 5mA 60S
Leakage Current0.5mA(max) at input 240V AC
Drop Test0.75m drop test, 6 times
Burn-In Test100% load, 5hours
MTBF50,000 hours@ 25°C
ApplicationUPS, E-bike, Motor, Solar systems, Torch, Lamps.etc.
Warranty2 years
Lead time10 days
Contact InfoSkype ID: charger7772     Email: sunjoy5@163 dot com
Packing  Way100pcs/Ctn(Wall Mount Type)     50pcs/Ctn(desktop type)
Ctn size: 44*39*29cm   white box/unit

Charge Drawing

Charge mode: CC--CV Mode
