Quick Details

  • Brand Name: TengShun
  • Model Number: TS-LA214-6030
  • Use: Standard Battery
  • Type: Electric
  • Place of Origin: Guangdong, China (Mainland)
  • Socket Standard: EU/AU/UK/US
  • Input voltage: 100-240VAC 50/60Hz
  • Input Plug: EU US UK AUS BZ(Interchangeable plugs)
  • Output: 12V2.5-3A 6V3A 24V1.5A 36V1A
  • Output Connector: DC Jack, Alligator clips, Cigar lighter, XRL
  • Certificate: CE FCC UL SAA PSE KC ROHS
  • Charge mode: CC---CV---Float charge
  • Led Indicator: Red---In Charging; Green---Fully Charge or No load State
  • MQQ: 100pcs
  • Lead time: 10-12days
  • Product name: 6v lead acid charger

Packaging & Delivery

Packaging Details set package in white box
Delivery Time 12 working days
  Shenzhen desktop 6v 3a dc lead acid battery charger


Skype ID: linachan1126


Email: linachen@sztenshun dot com


Tengshun was established in 1999,with more than 500 people,and specilized in LifePo4 battery pack,Lithiumion battery pack,NI-MH battery pack,LifePo4 battery charger,Lithiumion battery charger,smart Ni-mh battery charger, Lead acid battery charger,power adaptor and so on.Mainly products for electric vehicles,e-bike,scooter,motorcycle,golf cart etc.

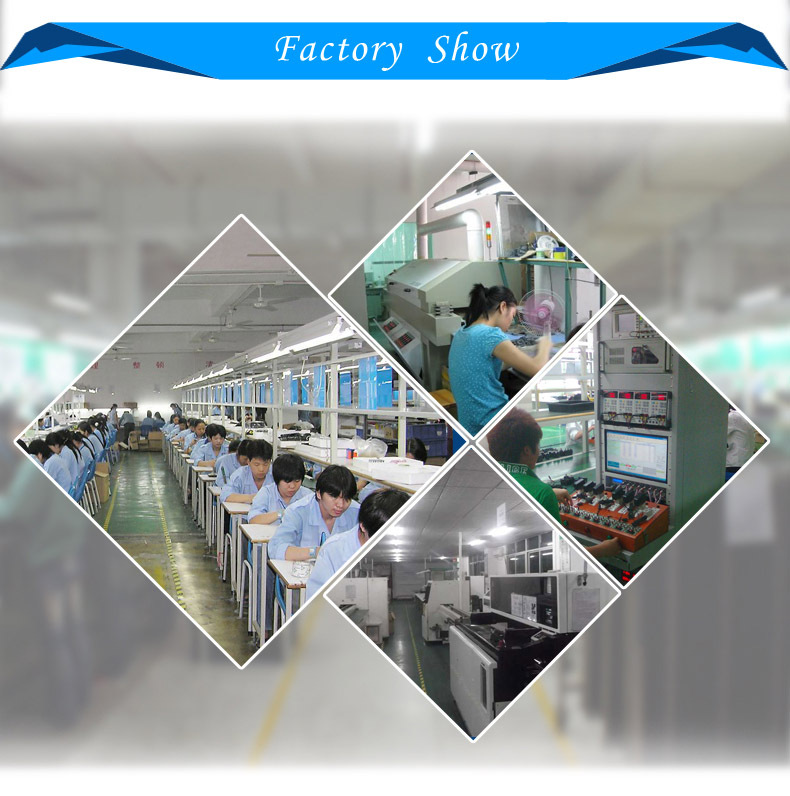

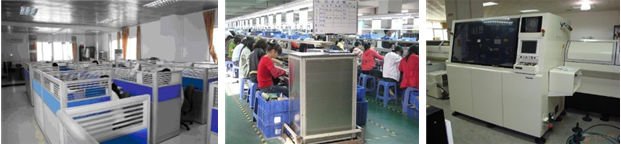

Factory Workshop




Product Description


ModelLead Acid Battery Charger/ Trickle battery Charger
Input100-240Vac  50/60Hz
Input plug(power cords)EU US UK AUS Korea Japan South Africa  plugs(power cable)
Battery voltage6V/12V/24V/36V/48V/60V  SLA Battery/Sealed Lead acid battery
Output voltage at no load (Voltage at Float Mode )6.6-6.8V---6V battery             13.6-13.8V---12V battery
27.2-27.6V---24V battery        40.8V-41.4V---36V battery
54.4V-55.2V---48V battery      68-69V---60V battery
Highest Charging voltage (Voltage at CV Mode)7.3-7.5V---6V battery             14.2-14.8V---12V battery                                         28.8-29.6V---24V battery        42.6-44.4V---36V battery                                     56.8-59.2V---48V battery        71-74V---60V battery
Max Power36Watts
Output12V2.5-3A 6V3A 24V1.5A 36V1A
Battery Capacity12V3-7Ah  6V5-12Ah  24V3-5Ah
Charge mode3 stages mode: CC---CV---Float Mode(pulse charge mode)
Led Indicator(Dual Color) Red---in Charging; Green--Fully charge/ no load
Led Switch current10-15% of charge current
Safe ProtectionOver-load protection  Over-current protection
Short circuit protection  Polarity Reverse Protection
Safe CertificateCE   FCC  UL   SAA   PSE   KC
Output ConnectorDC jack, XLR, JST, Cigar Lighter, Alligator Clips,Viation Plug.etc
Power Consumption≤0.5W at Rated Voltage(adapter at no load)
Ripple And NoiseOutput voltage 1%, Ripple&Noise≤120mv
High-Voltage testPrimary to secondary: 3 kV / 5mA 60S
Leakage Current0.5mA(max) at input 240V AC
Drop Test0.75m drop test, 6 times
Burn-In Test 100% load, 5hours
MTBF50,000 hours@ 25℃
ApplicationUPS, E-bike, Motor, Solar systems, Torch, Lamps.etc.
Warranty2 years
Lead time10 days
Contact InfoSkype ID: linachan1126   Email: linachen@sztenshun dot com
Packaging Info100pcs/Ctn(Wall Mount Type)   50pcs/Ctn(desktop type)
Ctn size: 44*39*29cm  white box/unit

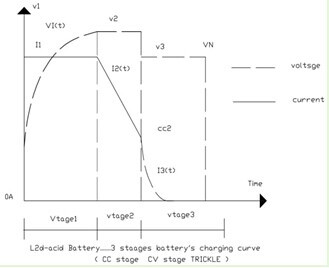

Charge Drawing




Main Products







Packaging & Shipping


 1. set package in white box

2.DHL EMS FEDEX UPS and so on,all kinds of shipping method for your choose

3.Leading time,after all order information confirmed,15-30days


Our Services


1.OEM price,Door to door service.

2.variety of chargers,all certifications are available

3.do logo as customer request

4.Free samples




1.Click chat now,talk to me freely on TM

2.Email me to tell which style u are interested in

3.send me inquiry and add my skype.Choose any way u like.



 All kinds of Top quality chargers are avaliable,If u are interested in our products,Pls do not hesitate to contact me!
