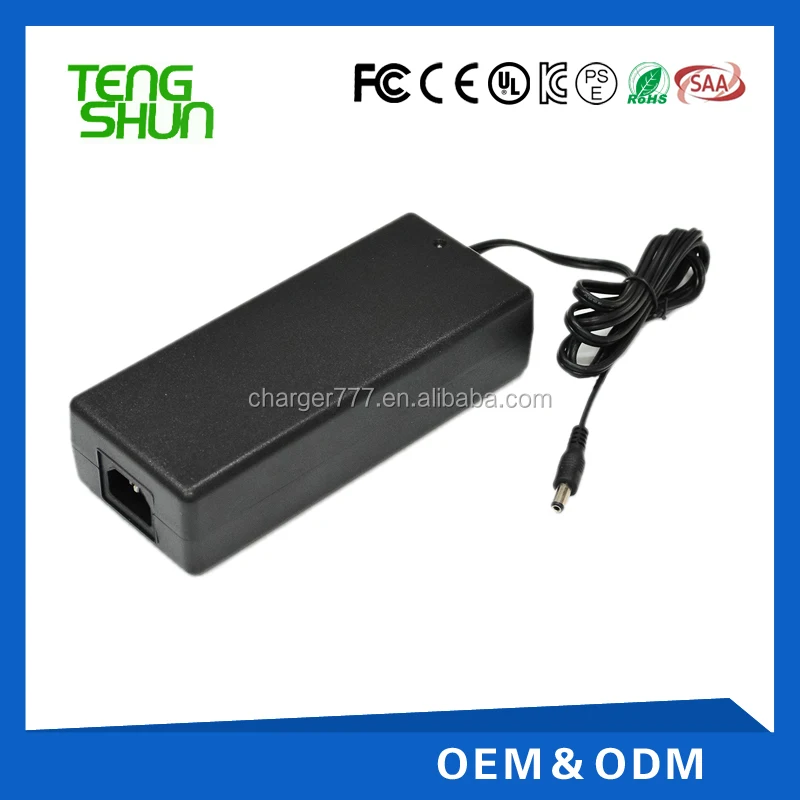

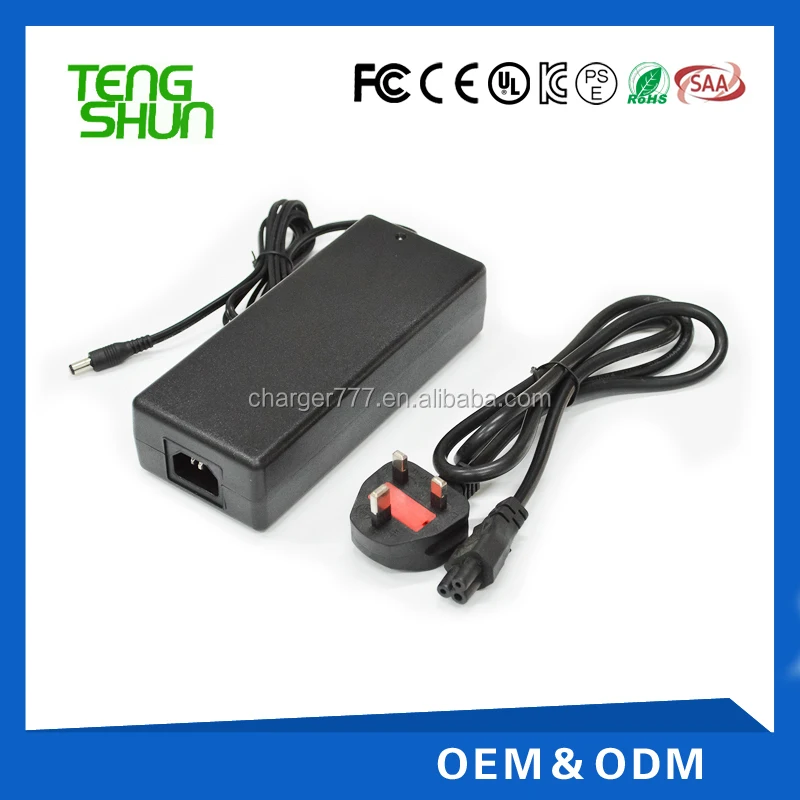

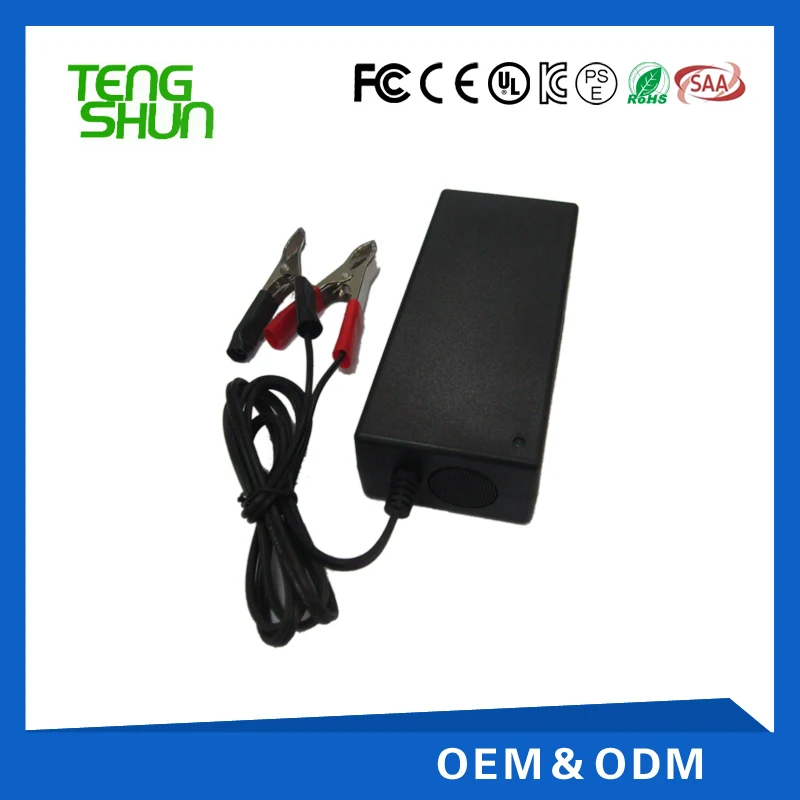

TengShun universal 36V3A 48V2A charger for forklift electric bike scooter lead acid battery

FOB Reference Price:Get Latest Price
US $8-10 / Unit | 10 Unit/Units piece/pieces (Min. Order)
Supply Ability:
10000 Unit/Units per Week
Port:
ShenZhen
Report Suspicious Activity
Overview
Quick Details
Brand Name:
TengShun
Model Number:
TS-12-111
Use:
Standard Battery
Type:
Electric
Place of Origin:
Guangdong, China (Mainland)
Socket Standard:
EU/AU/UK/US
Product name:
charger for lead acid battery
Input:
100-240VAC 50/60HZ
Input plug:
EU US UK AUS KOREA
Output:
36v3a 48v2a
Charge mode:
CC--CV---Float Mode
Certificate:
CE UL SAA PSE KC ROHS FCC
Led Display:
Red--charging; Green--full
Warranty:
2 Years
Packaging & Delivery
Packaging Details
set package in white box
TengShun universal 36V3A 48V2A charger for forklift electric bike scooter lead acid battery
Delivery Time
10 days

TengShun universal 36V3A 48V2A charger for forklift electric bike scooter lead acid battery



Contact: Echo Xiong

Whatsapp/Wechat: +86 186 7636 7225

Email: Echo18676367225@163 dot com





A.product descriptions

Application

♦ Electric vehicle, Ebike, Electric Scooter, Mortor, Golf car, car jumper

♦ Solar Systems, Home Application,UPS

♦ LED Torch, headlight, Portable power bank,etc.



Electrical Specification

♦ Universal Input: 100 – 240V AC, 50/60Hz

♦ Input Plug: EU  US  UK  AU  South Korea  South Africa Power cords

♦ Output Voltage Range of main products: 4.2~60V DC (Optional)

♦ Output Current Range of main products: 0.5-100A (Optional)



♦ Output: 36V3A  48V2A

♦ Charge mode: CC--CV--Float Mode(Lead acid battery charger)



6V Float Voltage: 6.8V(6.7-6.9V), Top Voltage: 7.3V(7.2-7.4V)
12V Float Voltage: 13.8V(13.6-14.0V), Top Voltage: 14.6V(14.4-14.8V)
18V Float Voltage: 20.7V(20.4-21.0), Top Voltage: 21.9V(21.6-22.2V)
24V Float Voltage: 27.6V(27.2-28.0), Top Voltage: 29.2V(28.8-29.6V)
36V Float Voltage: 41.4V(41.3-42.0), Top Voltage: 43.8V(43.5-44.4V)
48V Float Voltage: 55.2V(54.8-55.6), Top Voltage: 58.4V(58.0-59.2V)
60V Float Voltage: 69.0V(68.5-69.5), Top Voltage: 73.0V(72.5-74.0V)



♦ Led display: Red--in charging; Green--fully Charge

♦ Cut-off Current: 10-15% of Charge current

♦ Output Connector: 3pin Aviation Plugs, XLR socket, DC Jack, Alligator Clips, SAE connector,  Anderson Plugs, RCA

♦ Ripple & Noise:1% of Output Voltage



Mechanical Specification

♦ Size: 172*72*42mm

 Type: Desktop Type





Safety Certification

 CCC

 KC

 PSE

 SAA, C-Tick

 UL /cUL. FCC

 CE. CB. GS. BS1363



Energy Standard

♦ MEPS

♦ CEC-V

♦ ERP V

 Energy Star: Level 6

 Standby Power: <0.3W



Protection Function

 Over voltage protection

 Over current protection

 Over-load protection

 Short circuit protection



Environmental Protection

 RoHS , REACH , CPSIA or PAHs Compliant On Request



Operation And Storage Condition

 Operation Temperature: -20°C to 40°C

 Operation Humidity: 20% to 90% R.H

♦ Storage Temperature: -20°C to 75°C

 Storage Humidity: 1% to 90% R.H.

 MBFT: > 50,000Hours



Package

 Ctn Dim: 44*38*33cm  White box/unit  25pcs/ctn  16.5kg/ctn





B.Business condition

1.terms:FOB shenzhen

2.payment:T/T or L/C are accepted

3.delivery:5-15days
