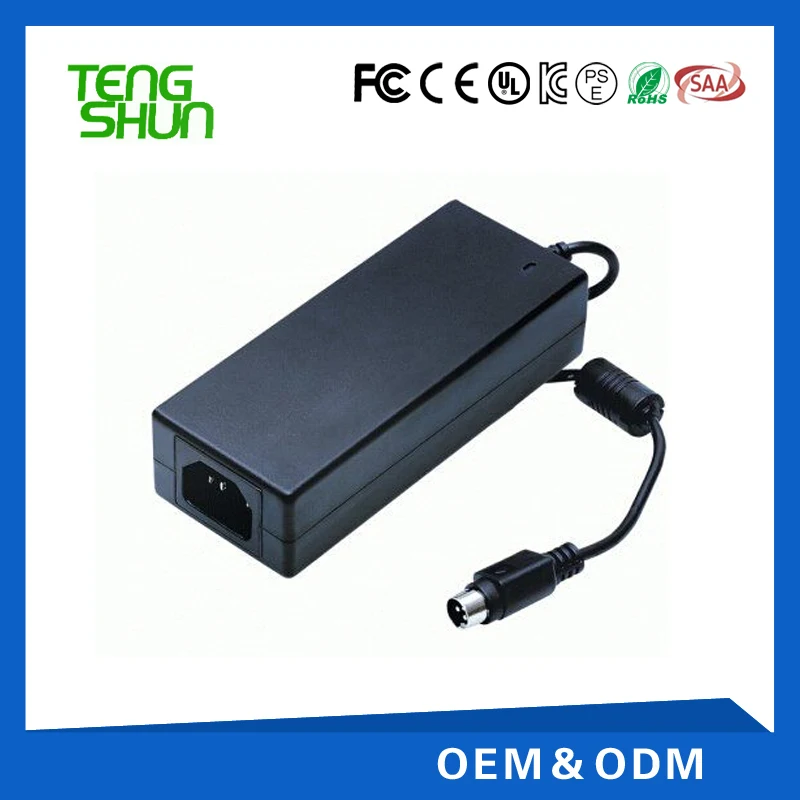

TengShun ac 220v dc 48v 2a lead acid battery charger for elctric bike / scooter / hoverboard

FOB Reference Price:Get Latest Price
US $8-10 / Units | 100 Unit/Units piece/pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
TengShun
Model Number:
TS-12-111
Use:
Standard Battery
Type:
Electric
Place of Origin:
Guangdong, China (Mainland)
Socket Standard:
EU/AU/UK/US
Product name:
E-bike charger
Input:
100-240VAC 50/60HZ
Input plug:
EU US UK AUS KOREA
Output:
48v2a
Charge mode:
CC--CV---Float Mode
Certificate:
CE UL PSE KC GS ROHS FCC
Led Display:
Red--charging; Green--full
Warranty:
2 Years
Supply Ability
Supply Ability:
10000 Unit/Units per Week
Packaging & Delivery
Packaging Details
set package in white box 25PCS/CARTON
TengShun ac 220v dc 48v 2a lead acid battery charger for elctric bike / scooter / hoverboard
Port
ShenZhen
Lead Time :
12 days

TengShun ac 220v dc 48v 2a lead acid battery charger for elctric bike / scooter / hoverboard



               Contact:   Echo Xiong

                      QQ:   160681935

Whatsapp/Wechat:   +86 186 7636 7225

                   Email:   Echo18676367225@163 dot com





A.product descriptions

Application

♦ Electric vehicle, Ebike, Electric Scooter, Mortor, Golf car, car jumper

♦ Solar Systems, Home Application,UPS

♦ LED Torch, headlight, Portable power bank,etc.



Electrical Specification

♦ Universal Input: 100 – 240V AC, 50/60Hz

♦ Input Plug: EU  US  UK  AU  South Korea  South Africa Power cords

♦ Output Voltage Range of main products: 4.2~60V DC (Optional)

♦ Output Current Range of main products: 0.5-100A (Optional)



♦ Output: 48V2A

♦ Charge mode: CC--CV--Float Mode(Lead acid battery charger)



6V Float Voltage: 6.8V(6.7-6.9V), Top Voltage: 7.3V(7.2-7.4V)
12V Float Voltage: 13.8V(13.6-14.0V), Top Voltage: 14.6V(14.4-14.8V)
18V Float Voltage: 20.7V(20.4-21.0), Top Voltage: 21.9V(21.6-22.2V)
24V Float Voltage: 27.6V(27.2-28.0), Top Voltage: 29.2V(28.8-29.6V)
36V Float Voltage: 41.4V(41.3-42.0), Top Voltage: 43.8V(43.5-44.4V)
48V Float Voltage: 55.2V(54.8-55.6), Top Voltage: 58.4V(58.0-59.2V)
60V Float Voltage: 69.0V(68.5-69.5), Top Voltage: 73.0V(72.5-74.0V)



♦ Led display: Red--in charging; Green--fully Charge

♦ Cut-off Current: 10-15% of Charge current

♦ Output Connector: 3pin Aviation Plugs, XLR socket, DC Jack, Alligator Clips, SAE connector,  Anderson Plugs, RCA

♦ Ripple & Noise:1% of Output Voltage



Mechanical Specification

♦ Size: 172*72*42mm

 Type: Desktop Type





Safety Certification

 CCC

 KC

 PSE

 SAA, C-Tick

 UL /cUL. FCC

 CE. CB. GS. BS1363



Energy Standard

♦ MEPS

♦ CEC-V

♦ ERP V

 Energy Star: Level 6

 Standby Power: <0.3W



Protection Function

 Over voltage protection

 Over current protection

 Over-load protection

 Short circuit protection



Environmental Protection

 RoHS , REACH , CPSIA or PAHs Compliant On Request



Operation And Storage Condition

 Operation Temperature: -20°C to 40°C

 Operation Humidity: 20% to 90% R.H

♦ Storage Temperature: -20°C to 75°C

 Storage Humidity: 1% to 90% R.H.

 MBFT: > 50,000Hours



Package

 Ctn Dim: 44*38*33cm  White box/unit  25pcs/ctn  16.5kg/ctn





B.Business condition

1.terms:FOB shenzhen

2.payment:T/T or L/C are accepted

3.delivery:5-15days
