Quick Details

  • Brand Name: TengShun
  • Model Number: TS-1083C
  • Use: Standard Battery
  • Type: Electric
  • Place of Origin: Guangdong, China (Mainland)
  • Socket Standard: EU/AU/UK/US
  • Name: 3.6v 4.8v nimh battery charger
  • Input: 100-240Vac 50/60Hz
  • Output: 3-5S 800mA, 4-6S 800mA, 5-10S 600mA
  • Charge mode: CC--CV--Trickle
  • Certificate: CE FCC UL SAA PSE KC GS
  • Warranty: 2 Years

Packaging & Delivery

Packaging Details 100pcs/ctn
white box/unit

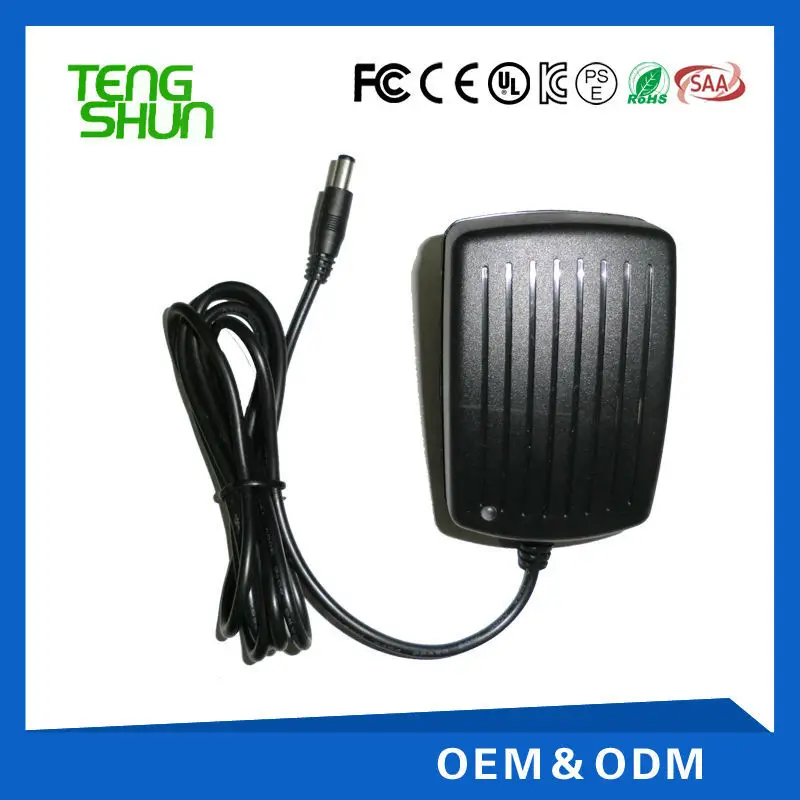

smart 3.6v 4.8v 7.2v 800ma intelligent nimh nicd trickle battery charger with MCU
Delivery Time 10 days



smart 3.6v 4.8v 7.2v 800ma intelligent nimh nicd trickle battery charger with MCU



Company Information



Skype ID: charger7772

Whatsapp/Wechat: +86-189 2372 3063

QQ: 654585812

     Our company was established in 1999,ShenZhen ,China.TengShun is a young and rapidly growing company within LifePo4 battery pack,Lithiumion battery pack,LifePo4 battery charger,Lithiumion battery charger,smart Ni-mh battery charger, Lead acid battery charger and power adaptor, which has got CE,FCC,ROHS,SAA,UL,EK,PSE certificate approval for the world application.We operate from our production factility in the national manufacturing standard and custom made products for original equipment manufacturers and customer markets.

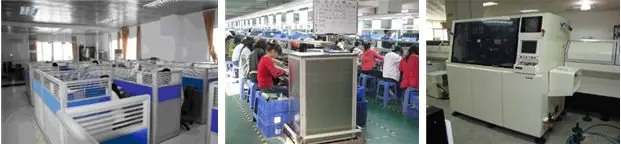

Our factory workshop


Product Description



Input Part



1. Input:100-240Vac  50/60Hz

2. Input voltage range: 90-264Vac

3. Input plug(power cord): EU  US  UK  AUS   South Korea Plugs(or Interchangeable plugs)



Output Part



1. Max voltage (with no load): 13-15V(for 2.4-6V 800mA), 19-22V(for 6-10V 600mA)



2. Output:



3.6-6V 800mA(for 3-5cells nimh battery pack)

4.8-9.6V 800mA(for 4-8cells nimh battery pack)

6-12V 600mA(for 5-10cells nimh battery pack)



3. Trickle Current: 55--65MA(Pulse ratio 1/20 +10mA)

4. Short Circuit Current: 10—20mA

5.Suitable Chargin Voltage: By -deltaV,it can find suitable charging voltage for charging batteries.

             Such as 4cells Ni-mh battery,charging voltage will set to be 6V,trickle current: 45-65mA



Control Unit

1. -delta V Detect: -5mV

2. 0 delta V Detect: 50--65S

3. Temperature protect: Power Supplier IC = 150°C

4. Temperature protect(optional): Battery package 50--60°C

Using 10K MF52 NTC, B=3950

5.Pulse ratio: 35/512  512mS/Cycle

(Trickle Charging Mode, each charging time:512mS, stop time:35mS)

6.Timer:2.5-8Hours (Suitable for batteries with capacity 1.2-4.4AH)



Safe Protection



1. Over-Current Protection

2. Short-circuit Protection

3. Polarity Reverse Protection

4. Over-temeprature protection

5. Over-load Protection



Led display for charge state:



1. Green---no load/ fully charged

2. Red---in Charging

3. Red flashes---Output polarity reverse/ Short-circuit/ low Battery voltage

Pulse Charging

The battery is charging 500mS and stop 35mS.

That makes the charging progress most effectively and battery package’s temperature rising lower.



Packaging & Shipping



B.Packing details :

1. Set package in white box

2. Ctn Dimension:44*39*28cm   100pcs/Ctn   13.5kg/Ctn

C.Business condition

1.terms:FOB shenzhen

2.payment:T/T or L/C are accepted

3.delivery time:2 weeks
