Quick Details

  • Brand Name: TengShun
  • Model Number: TS-1201000
  • Use: lead acid battery
  • Type: Electric
  • Place of Origin: Guangdong, China (Mainland)
  • Socket Standard: EU/AU/UK/US
  • Product: battery charger motorcycle
  • Input voltage: 100-240VAC 50/60Hz
  • Output: 6v1.5a 12v1a 24v0.5a
  • Charge mode: CC---CV---Float charge
  • Led display: Red--charging; Green--full
  • Warranty: 2 Years

Packaging & Delivery

Packaging Details white box/unit
100pcs/ctn

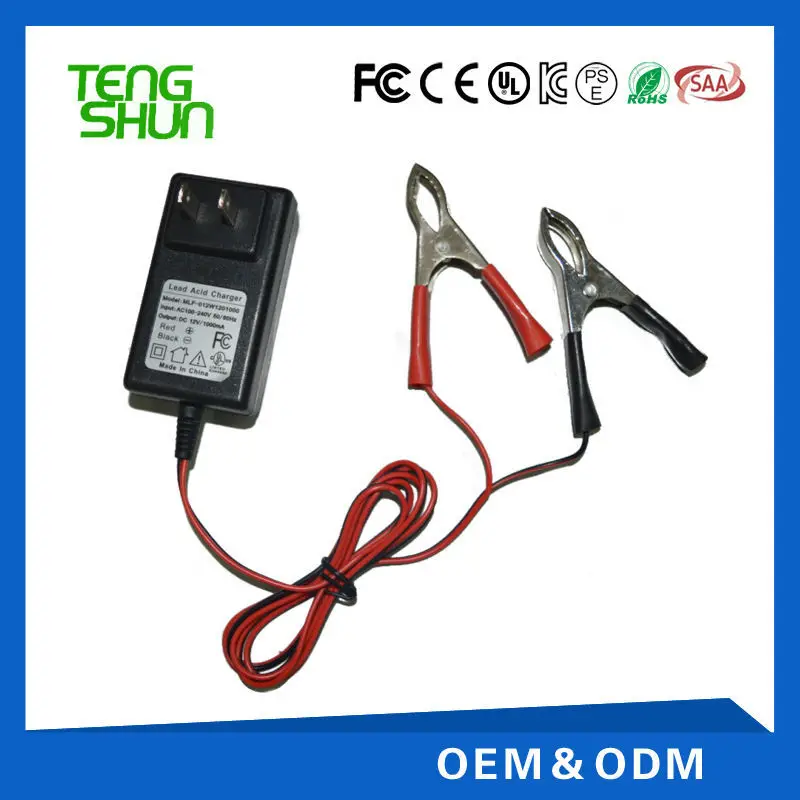

12v 1a electric motrocycle motor lead acid battery charger for 12v3-15ah battery
Delivery Time two weeks

12v 1a electric motrocycle motor lead acid battery charger for 12v3-15ah battery

Skype ID: charger7772

Email: sunjoy5@163 dot com

Whatsapp: 0086-18923723063





1. 12v1a 24v0.5A lead acid battery charger



 2. 12V2A 24V1A Lead acid battery charger





3. 12v3a 24v1.5a 36v1a electric bike scooter battery charger



 4. 12v4a 24v2a 36v1.5a 48v1a electric scooter bike battery charger



 5. 12v5a 24v3a 36v2a 48v1.8a electric scooter bike battery charger



6. 12v10a 24v5a 36v3a 48v2.5-3a sealed Gel lead acid battery charger





A.product descriptions

Application

♦ Electric vehicle, Ebike, Electric Scooter, Mortor, Golf car, car jumper

♦ Solar Systems, Home Application,UPS

♦ LED Torch, headlight, Portable power bank,etc.



Electrical Specification

♦ Universal Input: 100 – 240V AC, 50/60Hz

♦ Input Plug: EU  US  UK  AU  South Korea  South Africa Power cords

♦ Output Voltage Range of main products: 4.2~60V DC (Optional)

♦ Output Current Range of main products: 0.5-100A (Optional)



♦ Output: 12V1A

♦ Charge mode: CC--CV--Float Mode(Lead acid battery charger)



   1. Lead acid Battery Charger

   12V Lead acid battery charger:  13.8V(Float Voltage), 14.6V(Top Voltage)



♦ Led display: Red--in charging; Green--fully Charge
♦ Cut-off Current: 10-15% of Charge current

♦ Output Connector: Alligator Clips, DC Jack, SAE, XLR, Aviation Plugs, Hoursing connector, JST.

♦ Rated Power Max:15W Max

♦ Ripple & Noise:1% of Output Voltage



Mechanical Specification

♦ Size:75*42*29mm

 Type: Wall Mount Type

 Weight:0.12kg

 Color:Black



Safety Certification

 CCC

 KC

 PSE

 SAA, C-Tick

 UL /cUL. FCC

 CE. CB. GS. BS1363



Energy Standard

♦ MEPS

♦ CEC-V

♦ ERP V

 Energy Star: Level 6

 Standby Power: <0.3W



Protection Function

 Over voltage protection

 Over current protection

 Over-load protection

 Short circuit protection



Environmental Protection

 RoHS , REACH , CPSIA or PAHs Compliant On Request



Operation And Storage Condition

 Operation Temperature: -20°C to 40°C

 Operation Humidity: 20% to 90% R.H

♦ Storage Temperature: -20°C to 75°C

 Storage Humidity: 1% to 90% R.H.

 MBFT: > 50,000Hours



Package

 Ctn Dim: 44*37*30cm  White box/unit   100pcs/ctn  13.5kg/ctn



Contact Info

 Skype ID: charger7772     Email: sunjoy5@163 dot com



C.Business condition

1.terms:FOB shenzhen

2.payment:T/T or L/C are accepted

3.delivery:5-15days
