Quick Details

  • Brand Name: Tengshun
  • Model Number: TS-SLA-2402000
  • Use: Standard Battery
  • Type: Electric
  • Place of Origin: Guangdong, China (Mainland)
  • Input Voltage: AC 100~240V 50/60HZ

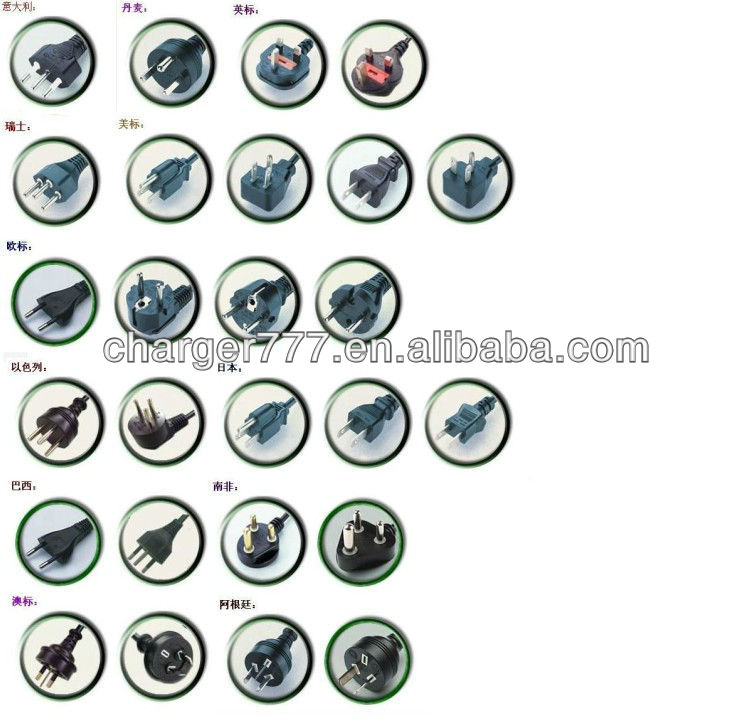

  • Input Plugs: EU US UK AU South Korea South African Plugs
  • Output voltage: 12v4a 24v2a 36v1.5a 48v1a
  • Charge mode: CC--CV--Float Mode
  • Certificate: CE FCC UL GS CB KC PSE SAA ROHS
  • Connector: XLR--Alligator Clips--Aviation---DC Jack

Packaging & Delivery

Packaging Details set package in box
Delivery Time Shipped in 10 days after payment

12v 4a 24v 2a CE UL  KC  SAA  PSE automatic lead acid battery charger



Skype ID: charger7772

Email: sunjoy5@163 dot com

Tel: +86-189 2372 3063





1. 12v1a 24v0.5A lead acid battery charger



 2. 12V2A 24V1A Lead acid battery charger





3. 12v3a 24v1.5a 36v1a electric bike scooter battery charger



 4. 12v4a 24v2a 36v1.5a 48v1a electric scooter bike battery charger



 5. 12v5a 24v3a 36v2a 48v1.8a electric scooter bike battery charger



6. 12v10a 24v5a 36v3a 48v2.5-3a sealed Gel lead acid battery charger





A.product descriptions

Application

♦ Electric vehicle, Ebike, Electric Scooter, Mortor, Golf car, car jumper

♦ Solar Systems, Home Application,UPS

♦ LED Torch, headlight, Portable power bank,etc.



Electrical Specification

♦ Universal Input: 100 – 240V AC, 50/60Hz

♦ Input Plug: EU  US  UK  AU  South Korea  South Africa Power cords

♦ Output Voltage Range of main products: 4.2~60V DC (Optional)

♦ Output Current Range of main products: 0.5-100A (Optional)



♦ Output: 12v4A  24V2A  36V1.5A  48V1A

♦ Charge mode: CC--CV--Float Mode(Lead acid battery charger)



   1. Lead acid Battery Charger

   6V Lead acid battery charger:  6.8V(Float Voltage), 7.3V(Top Voltage)

   12V Lead acid battery charger:  13.8V(Float Voltage), 14.6V(Top Voltage)

   24V Lead acid battery charger:  27.6V(Float Voltage), 29.2V (Top Voltage)

   36V Lead acid battery charger:  41.4V(Float Voltage), 43.8V (Top Voltage)

   48V Lead acid battery charger:  55.2V(Float Voltage), 58.4V (Top Voltage)



♦ Led display: Red--in charging; Green--fully Charge
♦ Cut-off Current: 10-15% of Charge current

♦ Output Connector: 3pin Aviation Plugs, XLR socket, DC Jack, Alligator Clips, SAE connector, Anderson Plugs, RCA

♦ Rated Power:65W Max

♦ Ripple & Noise:1% of Output Voltage



Mechanical Specification

♦ Size:135*65*37mm

 Type: Wall Mount Type

 Weight:0.58kg

 Color:Black/White



Safety Certification

 CCC

 KC

 PSE

 SAA, C-Tick

 UL /cUL. FCC

 CE. CB. GS. BS1363



Energy Standard

♦ MEPS

♦ CEC-V

♦ ERP V

 Energy Star: Level 6

 Standby Power: <0.3W



Protection Function

 Over voltage protection

 Over current protection

 Over-load protection

 Short circuit protection



Environmental Protection

 RoHS , REACH , CPSIA or PAHs Compliant On Request



Operation And Storage Condition

 Operation Temperature: -20°C to 40°C

 Operation Humidity: 20% to 90% R.H

♦ Storage Temperature: -20°C to 75°C

 Storage Humidity: 1% to 90% R.H.

 MBFT: > 50,000Hours



Package

 Ctn Dim: 44*38*30cm  White box/unit   100pcs/ctn  13kg/ctn



Contact Info

 Skype ID: charger7772     Email: sunjoy5@163 dot com



C.Business condition

1.terms:FOB shenzhen

2.payment:T/T or L/C are accepted

3.delivery:5-15days
