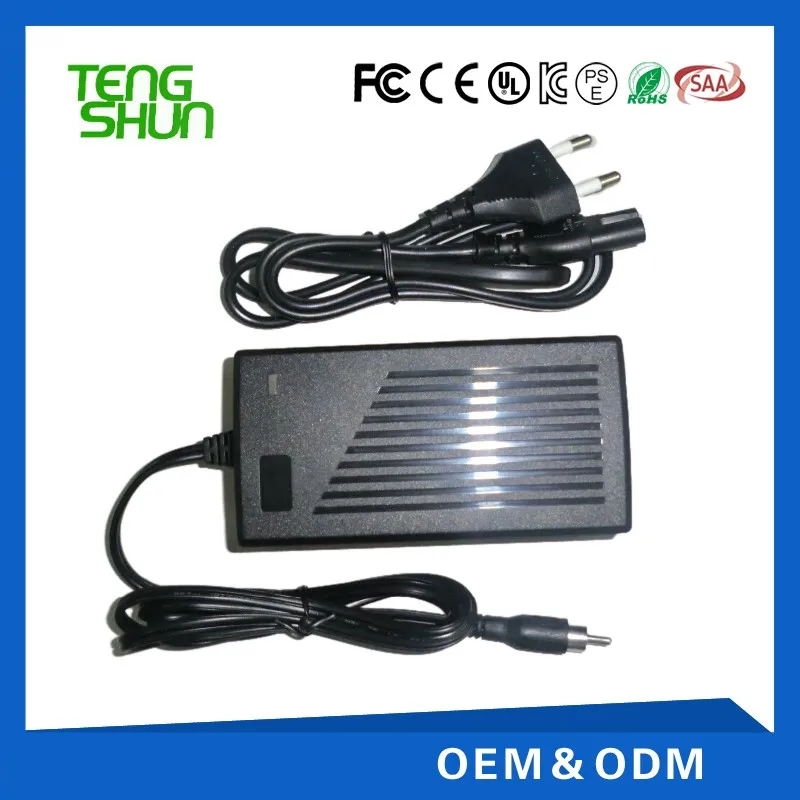

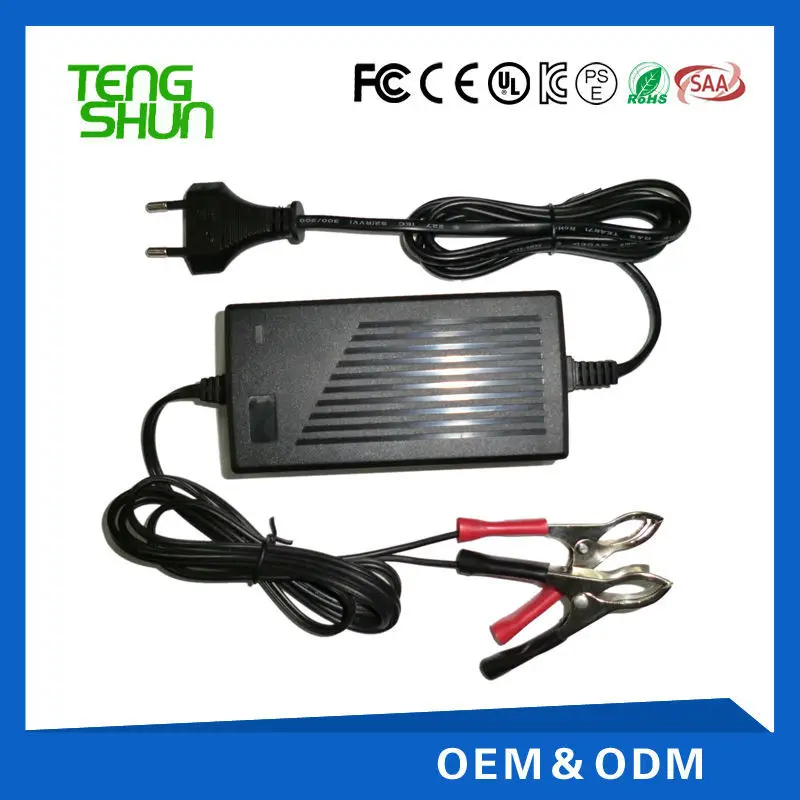

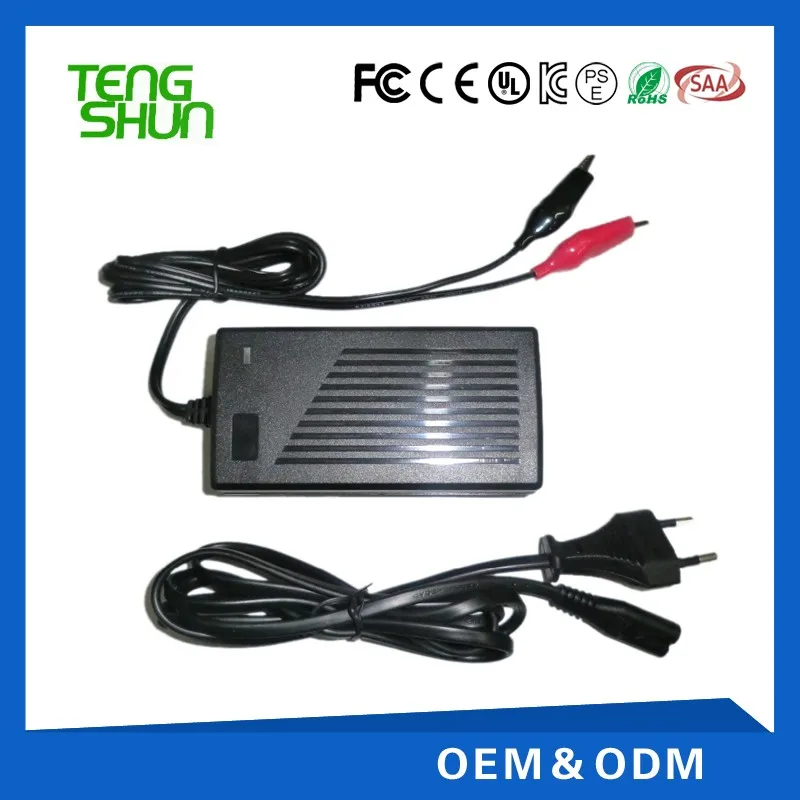

TengShun 12v4a 24v2a automatic lead acid battery charger electric scooter battery charger 24v

FOB Reference Price:Get Latest Price
US $6-8 / Unit | 100 Unit/Units piece/pieces (Min. Order)
Supply Ability:
10000 Unit/Units per Week
Port:
ShenZhen
Report Suspicious Activity
Overview
Quick Details
Brand Name:
TengShun
Model Number:
TS-12-111
Use:
Standard Battery
Type:
Electric
Place of Origin:
Guangdong, China (Mainland)
Socket Standard:
EU/AU/UK/US
Product name:
Electric scooter charger
Input:
100-240VAC 50/60HZ
Input plug:
EU US UK AUS KOREA
Output:
12V4A 24V2A
Charge mode:
CC--CV---Float Mode
Certificate:
CE UL PSE KC GS ROHS FCC
Led Display:
Red--charging; Green--full
Warranty:
2 Years
Packaging & Delivery
Packaging Details
set package in white box 50PCS/CARTON
TengShun 12v4a 24v2a automatic lead acid battery charger electric scooter battery charger 24v
Delivery Time
12 days

TengShun 12v4a 24v2a automatic lead acid battery charger electric scooter battery charger 24v



               Contact:   Echo Xiong

                      QQ:   160681935

Whatsapp/Wechat:   +86 186 7636 7225

                   Email:   Echo18676367225@163 dot com





A.product descriptions

Application

♦ Electric vehicle, Ebike, Electric Scooter, Mortor, Golf car, car jumper

♦ Solar Systems, Home Application,UPS

♦ LED Torch, headlight, Portable power bank,etc.



Electrical Specification

♦ Universal Input: 100 – 240V AC, 50/60Hz

♦ Input Plug: EU  US  UK  AU  South Korea  South Africa Power cords

♦ Output Voltage Range of main products: 4.2~60V DC (Optional)

♦ Output Current Range of main products: 0.5-100A (Optional)



♦ Output: 12V4A   24V2A

♦ Charge mode: CC--CV--Float Mode(Lead acid battery charger)



6V Float Voltage: 6.8V(6.7-6.9V), Top Voltage: 7.3V(7.2-7.4V)
12V Float Voltage: 13.8V(13.6-14.0V), Top Voltage: 14.6V(14.4-14.8V)
18V Float Voltage: 20.7V(20.4-21.0), Top Voltage: 21.9V(21.6-22.2V)
24V Float Voltage: 27.6V(27.2-28.0), Top Voltage: 29.2V(28.8-29.6V)
36V Float Voltage: 41.4V(41.3-42.0), Top Voltage: 43.8V(43.5-44.4V)
48V Float Voltage: 55.2V(54.8-55.6), Top Voltage: 58.4V(58.0-59.2V)
60V Float Voltage: 69.0V(68.5-69.5), Top Voltage: 73.0V(72.5-74.0V)



♦ Led display: Red--in charging; Green--fully Charge

♦ Cut-off Current: 10-15% of Charge current

♦ Output Connector: 3pin Aviation Plugs, XLR socket, DC Jack, Alligator Clips, SAE connector,  Anderson Plugs, RCA

♦ Ripple & Noise:1% of Output Voltage



Mechanical Specification

♦ Size: 135*65*37mm

 Type: Desktop Type





Safety Certification

 CCC

 KC

 PSE

 SAA, C-Tick

 UL /cUL. FCC

 CE. CB. GS. BS1363



Energy Standard

♦ MEPS

♦ CEC-V

♦ ERP V

 Energy Star: Level 6

 Standby Power: <0.3W



Protection Function

 Over voltage protection

 Over current protection

 Over-load protection

 Short circuit protection



Environmental Protection

 RoHS , REACH , CPSIA or PAHs Compliant On Request



Operation And Storage Condition

 Operation Temperature: -20°C to 40°C

 Operation Humidity: 20% to 90% R.H

♦ Storage Temperature: -20°C to 75°C

 Storage Humidity: 1% to 90% R.H.

 MBFT: > 50,000Hours



Package

 Ctn Dim: 44*38*33cm  White box/unit  50pcs/ctn 22.5kg/ctn





B.Business condition

1.terms:FOB shenzhen

2.payment:T/T or L/C are accepted

3.delivery:5-15days
