Quick Details

  • Brand Name: Tengshun/OEM/ODM
  • Model Number: TS-PS109P-12020
  • Use: MID,DPF,AMPON,HUMIDIFIER,AIR CLEANER,MASSOR ETC.
  • Type: Electric
  • Place of Origin: Guangdong, China (Mainland)
  • Socket Standard: EU/AU/UK/US
  • Name: 12v charger
  • Input: 100-240V AC
  • Output: 5V4A 12V2A 24V1A
  • Certificate: CE PSE UL KC SAA ROHS
  • Warranty: 2 years

Packaging & Delivery

Packaging Details: 100pcs/ctn.19.5kgs/ctn,size:50*44*33cm
Delivery Detail: 12-15DAYS

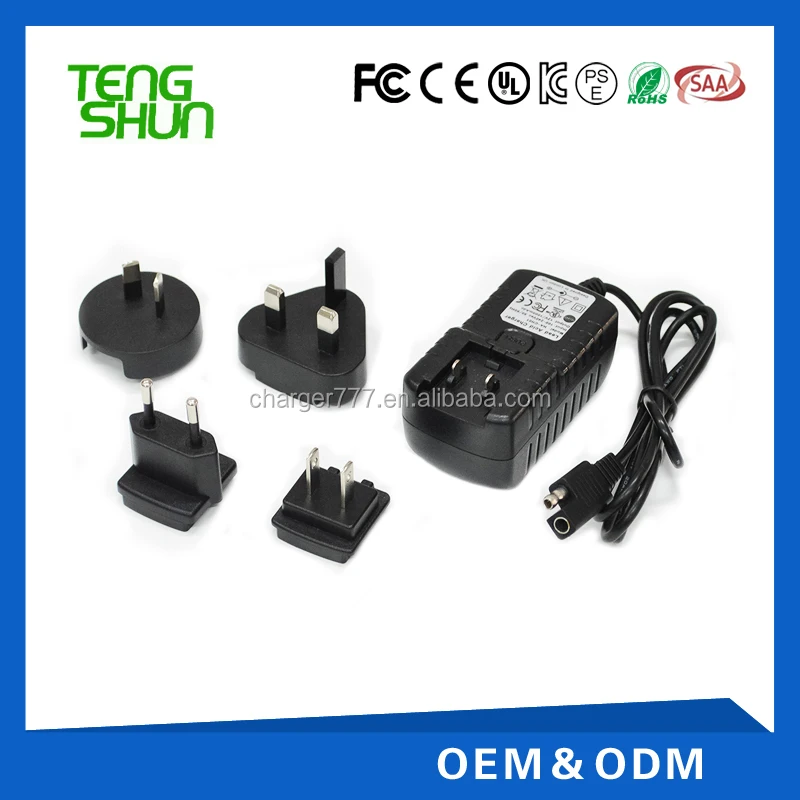

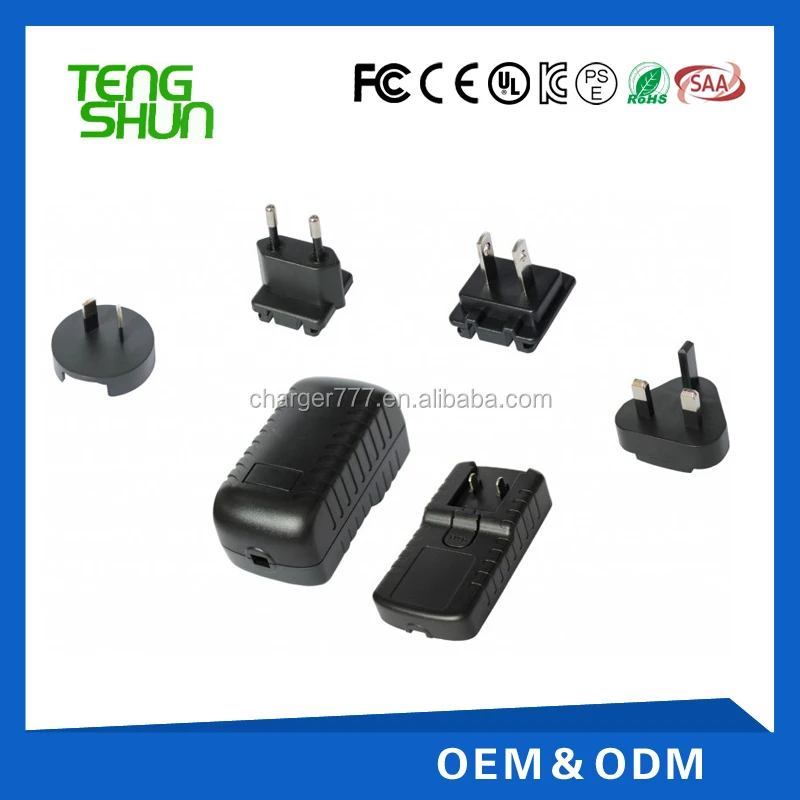

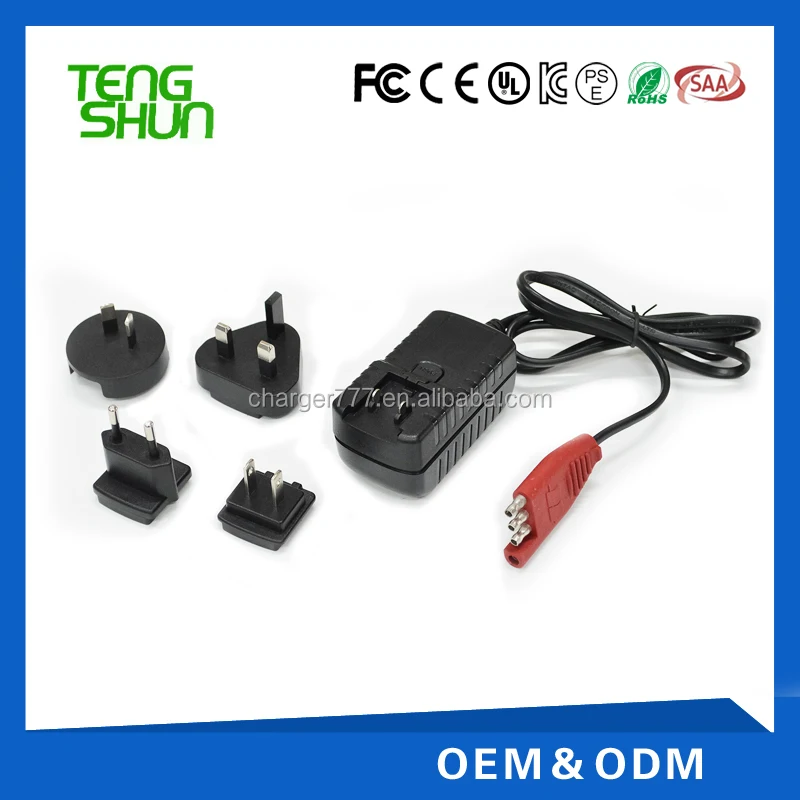

12v2a universal interchangeable charger adapter



Thank you for you're interested in our products!Any more detail information or need,pls contact me with email:linachen@sztenshun dot com or Skype:linachan1126,I'm pleasure to support you!!!



ModelPower Adapter/Switching Mode Power Supply
Input100-240Vac 50/60Hz
Output Voltage range5v 6v 7.5v 8v 9v 10v 12v 14v 15v 18v 19v 20v 24v 27v 30v 32v 36v 48v(Customized voltage)
Line Regulation on voltage

The line regulation is less than ±5% while measuring at rated load

and +/-5% of input voltage changing.
Load Regulation on voltage

The load regulation for output voltage is less than +/-5%,

at measured output load from 10% to 100% rated load
Product Range

6W:5V500mA 5V1A 6V1A 7.50.5A 9V0.5A 10V0.5A 12V0.5A

12W:5V1.5A 5V2A 6V2A 7.5V1.5A 9V1.2A 10V1.2A 12V1A 15V0.8A

18W:5V3A 6V2.5A 7.5V2A 9V2A 10V1.5A 12V1.5A 15V1A 16V1A 18V1A

24W:5V4A 6V4A 9V2.5A 10V2A  12V2A 15V1.5A 18V1.2A 24V1A 36V0.5A 48V0.5A

36W:6V5A 7.5V3A 9V4A 10V3A 12V3A 15V2A 18V2A 20V1.5A 24V1.5A 36V1A

48W:10V4A 12V4A 15V3A 19V2.5A 20V2A 24V2A 36V1.5A 48V1A

60W:10V5A 12V5A 15V4A 18V3A 20V3A 24V2.5A

72W:12V6A 19V3.5A 18V4A 24V3A 48V1.5A

100W:12V8A 15V6A 18V5A 20V4.5 24V4A 36V2.5A 48V2A
150W:12V10A 15V8A 24V6A 36V4A 48V3A
Output 5V4A 12V2A 24V1A
DC jack5.5*2.1  5.5*2.5  3.5*1.35  3.5*1.0  4.0*1.7  2.5*0.7 .etc
Normal Output cable

1,2A: 2464 22AWG 1.2m;

2,3A: 2464 20AWG 1.2m;

3,4A: 1185 18AWG 1.2m;

5,6A: 1185 16AWG 1.2m;



Safe Protection

Over-load protection Over-voltage protection   Over-current protection

Short circuit protection Polarity Reverse Protection



Safe CertificateCE ROHS FCC UL CB BS SAA C-tick PSE KC
Efficiency>80%
DC JackDC jack, XLR, JST, Cigar Lighter, Alligator Clips,Viation Plug, Din Plug.etc
Power Consumption≤0.5W at Rated Voltage(adapter at no load)
Ripple And NoiseOutput voltage 1%, Ripple&Noise≤120mv
High-Voltage testPrimary to secondary: 3 kV / 5mA 60S
Leakage Current0.5mA(max) at input 240V AC
Drop Test0.75m drop test, 6 times
Burn-In Test100% load, 5hours
MTBF50,000 hours@ 25°C
ApplicationLED, Mobile Phone,MP3,Tablet, Portable power bank, CCTV, LCD .Etc
Warranty2 years
Lead time12-15 working days
Contact Info Email:linachen@sztenshun dot com   Skype:linachan1126
Package

100pcs/Ctn(Wall Mount Type)    Ctn size: 44*39*29cm   white box/unit

50pcs/Ctn(desktop type)     Ctn size: 44*39*29cm   white box/unit

100pcs/Ctn(desktop type)     Ctn size: 50*44*33cm   white box/unit
