Quick Details

  • Brand Name: TengShun
  • Model Number: TS-17890
  • Use: Lead-Acid Battery pack
  • Type: Electric
  • Place of Origin: Guangdong, China (Mainland)
  • Product name: automatic battery float charger
  • Certificate: CE FCC UL SAA PSE KC ROHS
  • Input voltage: 100-240VAC 50/60Hz
  • Charge mode: CC---CV---Float charge
  • Output Connector: DC Jack, Alligator clips, Cigar lighter, XRL
  • Input Plug: EU US UK AUS BZ(Interchangeable plugs)
  • output: 12v4a 24v2a 36v1.5a 48v1a

Packaging & Delivery

Packaging Details: set package in white box

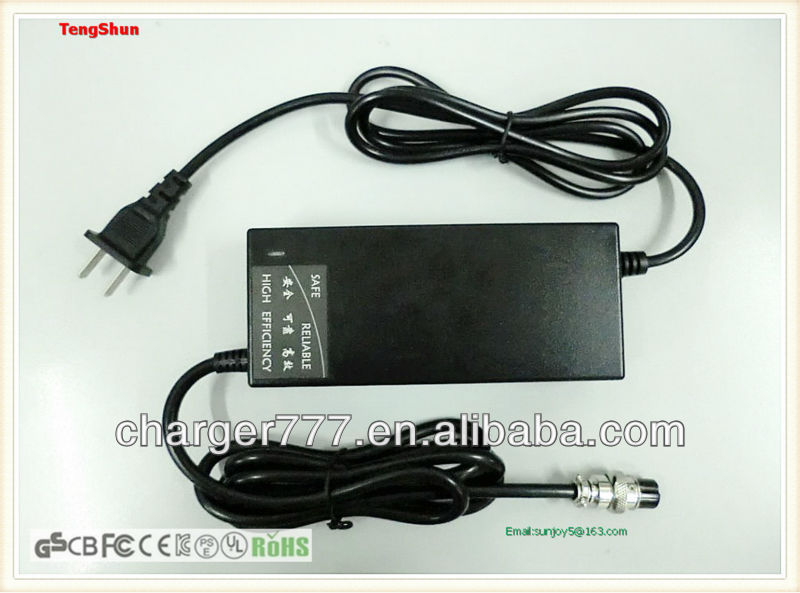

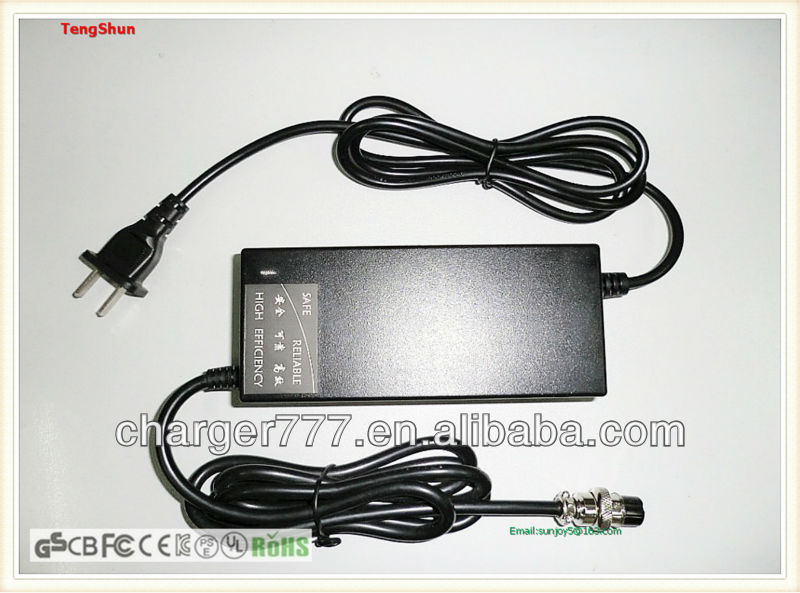

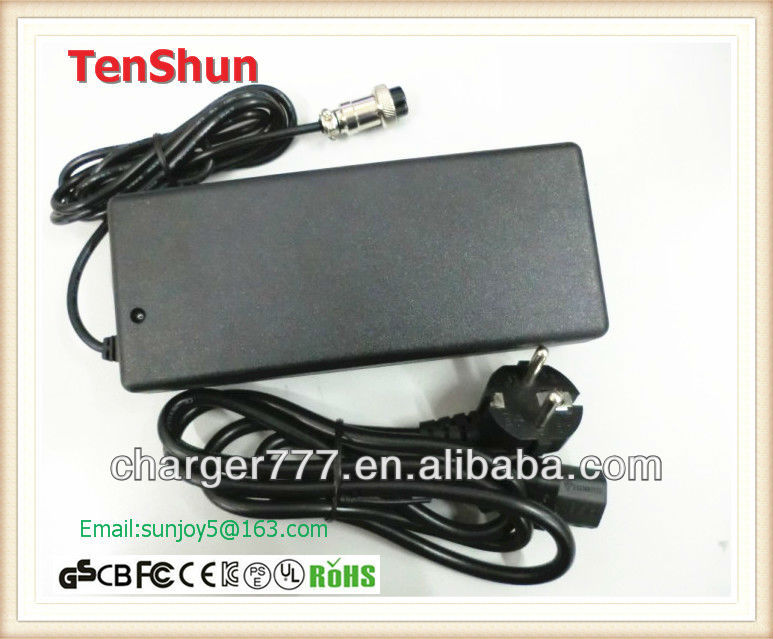

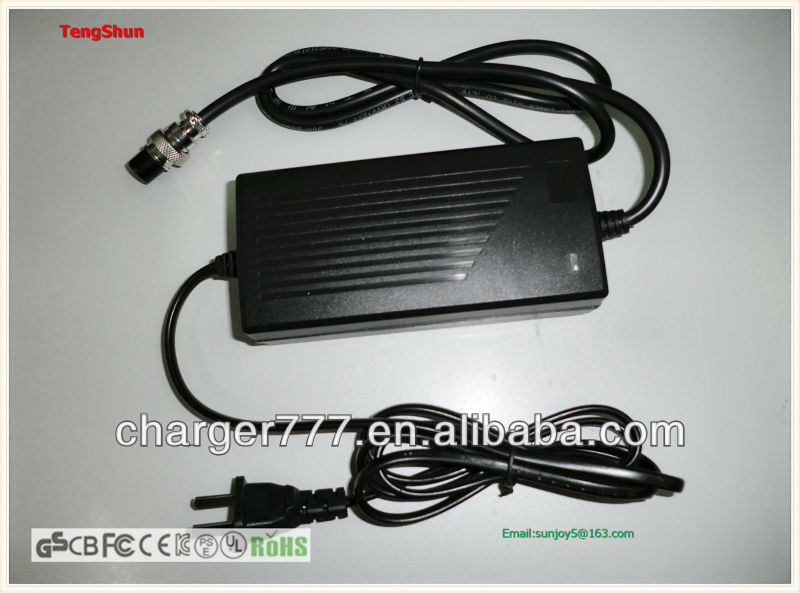

24v2a automatic battery float charger for 24v12-32ah lead acid battery



12V4A lead acid battery charger

36V1.5A Lead acid battery charger

48V1A Lead acid battery charger

24V2A lead acid battery charger

6V5A lead acid battery charger



Input: 100-240VAC 50/60Hz

Charge Mode: CC---CV---Float Mode

One charger can charge 6V or 12V or 24V or 36V or 48V  lead acid battery



.3-stages charging mode

 1.Constant current          Voltage at no load

   6V5A       12V4A            24V2A         36V1.5A        48V1A

    5A                                   6.6-6.9V for 6V;

    4A                                   13.6-13.8V for 12V

    2A                                   27.2-27.6V for 24V

    1.5A                               40.8-41.4V for 36V

    1A                                   54.4-55.2V for 48V



 2.Constant voltage

    14.3-14.6Vdc for 12V,    7.2-7.4Vdc for 6V;    28.8-29.4V for 24V;      43.2-43.8V for 36V;     57.6-58.4V for 48V

 3.Floating voltage



    5A                                   6.6-6.9V for 6V;

    4A                                   13.6-13.8V for 12V

    2A                                   27.2-27.6V for 24V

    1.5A                               40.8-41.4V for 36V

    1A                                   54.4-55.2V for 48V



Capacity 7Ah to 20Ah

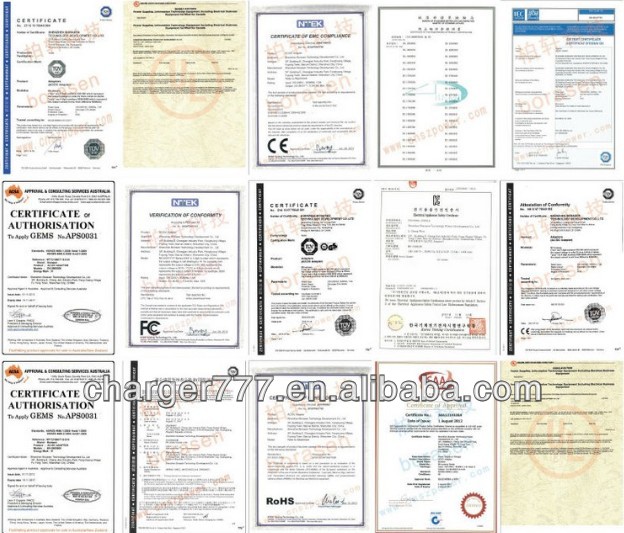

Certificate:CE FCC UL SAA PSE KC ROHS

Warranty: 2 years

Lead time: 10 work days

MQQ: 500pcs



Universal Smart Charger for 6&12.0V&24V&36V
Lead-Acid battery pack
.It is universal smart charger for 6V&12.0V&24V&36V
 Lead-Acid battery
.3-stages charging mode



 1.Constant current          Voltage at no load

   6V5A       12V4A            24V2A         36V1.5A        48V1A

    5A                                   6.6-6.9V for 6V;

    4A                                   13.6-13.8V for 12V

    2A                                   27.2-27.6V for 24V

    1.5A                                40.8-41.4V for 36V

    1A                                   54.4-55.2V for 48V



 2.Constant voltage

    14.3-14.6Vdc for 12V, 7.2-7.4Vdc for 6V; 28.8-29.4V for 24V



 3.Floating voltage



    5A                                   6.6-6.9V for 6V;            Float current: 550mA

    4A                                   13.6-13.8V for 12V       Float current: 450mA

    2A                                   27.2-27.6V for 24V       Float current:250mA

    1.5A                               40.8-41.4V for 36V        Float current: 200mA

    1A                                   54.4-55.2V for 48V       Float current:150mA


.Led indicate charging status:
  Red---in charging; Green---fully charged/no load
.Safety protection
 Short circuit protection
 Reversal Protection

 Over voltage protection   Over load protection

.No drain current from the battery even if AC power is off;


.Input:100-240Vac 50-60Hz
.Output:6Vdc ,12.0Vdc, 24Vdc, 36Vdc  charging current:1-3A

.Dimension:135.5*65.5*37mm

.Weight:380g.







 Skype ID: charger7772    Alibaba Trademanager ID: charger777
